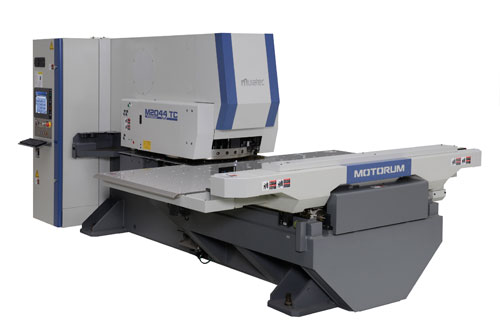

CNC Servo Motor Driven Ram Turret Punch Press
M2044TC
Environment-friendly Design
MURATEC for the first time in punch press history, introduced in 1994, a new concept in ram drive technology, which incorporated a toggle mechanism driven by an AC servo motor. Hydraulic oil-less sheet metal processing enables ecological machine operations saving environmental natural resources.
Energy-efficient Operation, Low Running Costs
-
In the M2044TC, the ram servo motor consumes power only during the punching process, thus reducing running costs drastically.
-
The absence of a hydraulic unit on the M2044TC gets rid off hydraulic unit and oil maintenance, disposal of waste oil, and periodic oil replacement. This saves on hydraulic oil and maintenance costs, thus reducing running costs.
Easy to Operate
User-friendly, simple machine operation
-
The M2044TC does not require machine warming-up cycle,thus enabling quick machine start.
Punching capacity |
 |
200 kN
20.4 Metric Tons
22.4 US Tons |
|
Maximum sheet thickness |
|
6.35 mm [0.25"] |
|
Maximum sheet size
without repositioning (Y x X) |
|
1250 mm x 1250 mm [49.21' x 49.21'] |
|
Hit rate |
|
1.0t
25 mm [0.984"] pitch
16.5 mm [0.650"] stroke |
|
220 hpm |
|
1.0t
1 mm [0.039"] pitch
16.5 mm [0.650"] stroke |
|
600 hpm |
|
Punching accuracy |
|
+/- 0.1 mm [+/- 0.004"] |
