LS3015MC
LS3015MC

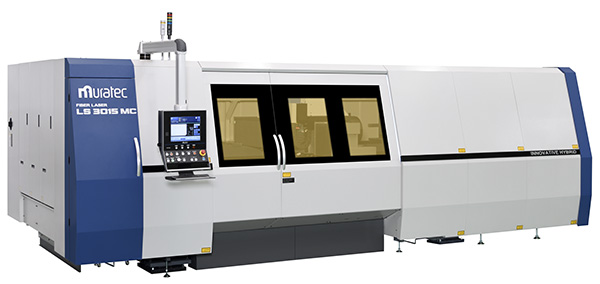

LS3015MC is an innovative combination machine that can perform laser cutting, drilling, and tapping in one machine.
LS3015MC |
Point 1 Space-Saving Design

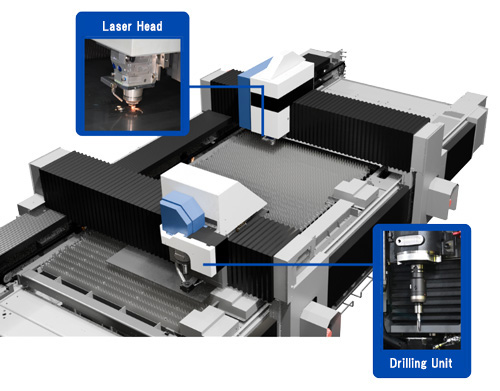

It features a compact layout that integrates two processing units—one for laser cutting and one for drilling—within the same space, minimizing installation space requirements.
Point 2 Process Integration
It is equipped with a sheet-holding mechanism that suppresses vibration during processing, as well as a suctioning unit to remove chips and slugs.
These features enable drilling, tapping, countersinking, and counterboring to be performed directly on sluts pallet, all within a single setup.
Point 3 Thick Sheet Processing
Utilizing a flying optics-type fiber laser unit, we offer combined processing for materials up to 16mm and laser cutting for materials up to 25mm.
Specifications of Machine
| Laser Output | 6000 W / 8000 W |
|---|---|
Mounted Units Drilling |
Drill / Tap / Counter-bore / Counter-sink |
| Max. Sheet Size | 3050 mm × 1525 mm |
| Max. Thickness for Laser | 25mm（Mild Steel Oxygen Cut） |
| Floor Space | 3369mm × 10536mm (Peripheral Devices are not included) |
| Machine Height | 2495mm (Safety Signal Tower is not included) |
Drilling Unit Specification
Process Range |
X:34 - 2988 mm,Y:10 - 1525 mm |
|---|---|
| Max. Clamping Thickness | 16mm (Clamping by work holders is required for drilling) |
| Max. Spindle Speed | 4500 min-1 (rpm) |
| Tool Capacity | 20 |
| Max. Machining Diameter Tap | M16 Counter bore：φ20 (In use of mild steel SS400) |
| Shank Type | HSK-A50 |
For your inquiry : Please consult your local Muratec sales networks for information regarding the products and services that may be available in your area.
