Press Brake [BB series]

BB series Advanced Version

Ball Screw Press Brake

BB series Advanced Version

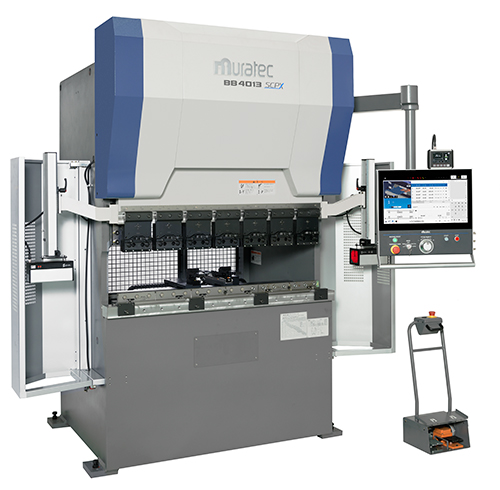

BB4013
Muratec Ball Screw Press Brake BB series is driven by AC servo motor and ball screw mechanism. It has reached high productivity with a fast ram and back gauge plus extremely consistent repeat accuracy.

Ball screw drive

The ram shaft drive enables high-speed movement at 100mm/sec and stable repeatstop accuracy by adopting a ball screw drive mechanism by AC servo motor and ball screw drive. This is a drive method superior in environmental performance including being oilless and noise reduction by the reducer.

High-speed movement by the ball screw drive
Stable high repeating accuracy by the ball screw drive
Environmental performance
(oilless and noise reduction by the reducer)

Drive Ram Mechanism

User-friendly Operating Panel and Completely Renewed User Interface



For Advanced Version, we adopt 21.5-inch wide display as an operating panel, We coped with multi-touch and improved operability. Also, user interface was completely renewed to enhance the operator support function such as the Announce Indicator that informs operator of machine condition.

New User Interface





BB4013

BB6013

BB6020

Press force

kN

ton

353

36

539



55

539



55

Bending length

(mm)

1260

1300

2100

Distance between frames

(mm)

1300

900

1700

Gap depth

(mm)

100

400

400

Open height

(mm)

280

280

280

Ram stroke

(mm)

150

150

150

Ram speed

Approach

(mm/S)

100

95

95

Bending



(mm/S)



20



20



20

Return



(mm/S)



100



95



95

Height from floor

(mm)

2390

2610

2610

Total depth

(mm)

1120

1360

1360

Table height

(mm)

900

900

900

Total width

(mm)

1630

1624

2425

Weight



(ton)

3.5

4.5

5.0

For your inquiry : Please consult your local Muratec sales networks for information regarding the products and services that may be available in your area.
