Multi-tasking Front Twin Spindle CNC Turning Center

Multi-tasking Front Twin Spindle CNC Turning Center

Multi-tasking Front Twin Spindle CNC Turning Center with Y-axis function

MWR120 / MW40

A high precision and compact combined processing machine
consisting of a twin spindle CNC chucker equipped with Y-axis function!

Machine Models

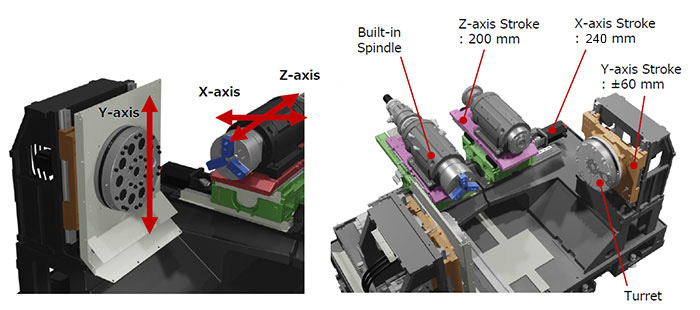

Basic structure of MWR120

MW40

MWR120

MW40

MWR120

Chuck size

STD: 110 mm (4")
OPT: 135 mm (5")

165 mm (6")
210 mm (8")

Number of turret stations

10 x 2

10 x 2

Spindle Drive motor

3.7 kW / 30 min x 2

11 kW S6 25% × 2

Max. Spindle speed

8,000 rpm

6,000 rpm

Live tool drive motor

1.0 kw x 2

5.5kW(S3/S6 25%)

Axis stroke

X:155mm
Z:170mm
Y:±25mm

X:190mm
Z:200mm
Y:±60mm

Gantry Loader workpiece handling capacity

0.5 kg x 2(Include jaw weight)

3.0 kg x 2(Include jaw weight)

Gantry Loader workpiece handling size

φ 50 x 90mm

φ 120 × 80 mm
