MT Series
In-line Opposed Twin Spindle CNC Turning Machine
MT Series
MURATEC has developed the user-friendly MT series turning machines taking into consideration modern day needs of the industry such as ease of operation, precision machining, compactness, unattended machining capabilities, integration of operations with Y-axis capabilities to enable complete machining processes in one machine and low cost manufacturing.
MT Series Machine Model
| Standard type | Gantry Loader type |
 |
 |
| MT12, MT20, MT25, MT100, MT200 | MT12, MT20, MT25, MT100, MT200 |
| with Bar Feeder systems | Servo Unloader type |
 |
 |
| MT1051, MT1065, MT1065EX | MT100 |
| 6” Chuck capability, with Y-axis capability | |
| 8" Chuck capacity, with Y-axis capability | |
| 6" / 8" Chuck capacity | |
| 8”, 10" Chuck capacity, with Y-axis capability | |
| 10" Chuck capacity, with Y-axis capability |
Main Specifications
|
 |
|
| MT100 | MT200 | |
|---|---|---|
| Maximum chuck size | 165 mm (6") | 210 mm (8") |
| Number of turret stations | 2 turret : 15 × 2 3 turret : 15 × 3 |
2 turret : 15 (upper) & 12 (lower) 3 turret : 15(upper & right) & 12 (lower) |
| Maximum bar workpiece size | dia. 51 mm | Standard: dia. 55 mm Option: dia. 65mm、70mm(Left)、80 mm (Left) |
| Spindle speed range | Standard: 5000min-1 （dia. 90mm） Option: 6000min-1 （dia. 90mm） 4500min-1 （dia. 110mm, Left） |
Standard: 5000min-1（dia. 100mm） Option: 4000min-1（dia. 110mm） 3500min-1（dia. 120mm, Left） 3500min-1（dia. 130mm, Left） |
| Spindle AC motor | Standard:11 kW / 30 min x 2 Option (Left ):15kW/30min (11kW/cont.) × 1 |
15 kW / 30 min x 2 |
| Live tool drive motor | 8.0 kW / max. (2.2kW / cont) [Max=3500min-1, Time duty 10% (On:3.0 sec)] 12.0 kW / max. (2.2kW / cont) |
14.0 kW / max. (4.8 kW / comt.) [Max=4500min-1, Time duty 10 (On:3.0 sec)] |
| Live tool maximum speed | 6,000 min-1 | 6,000 min-1 |
| Maximum tool shank size | 16 mm | 16 mm |
| Gross weight with loader | 9,000 kg | 12,000 kg |
|
|||
| MT1051 | MT1065 | MT1065EX | |
|---|---|---|---|
| Maximum chuck size | 165 mm ( 6") | ||
| Number of turret stations | 15 x 2 |
12 x 2 | |
| Maximum bar workpiece size | Left： dia. 51 mm Right： dia. 51 mm |
Left： dia. 65 mm Right： dia. 51 mm |
|
| Spindle speed range | Left：6,000min -1 （dia. 90 mm） Right：6,000min -1 （dia.90 mm） |
Left：4,500min-1 （dia. 110 mm） Right：6,000min-1 （dia. 90 mm） |
|
| Spindle AC motor | Standard: 11kW / 15min Option: 7.5kW / 15min |
Standard: 15kW / 15min Option: 11kW / 15min |
Standard: 18.5kW /15 min Option: 15kW/ 15min |
| Live tool drive motor | 12.0 kW / Max. （2.2 kW / cont.） |
22.0 kW / Max. （2.2 kW / cont.） |
|
| Tool Clamping | O.D.Tool： □ 20 mm I.D.Tool： dia. 25 mm Live Tool： dia. 16mm |
O.D.Tool： □ 20/25 mm I.D.Tool ： dia. 25/32 mm Live Tool： dia. 16mm |
|
| Gross weight | 6,000 kg | ||
 |
 |
 |
|

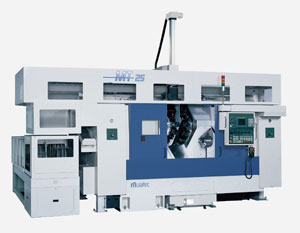

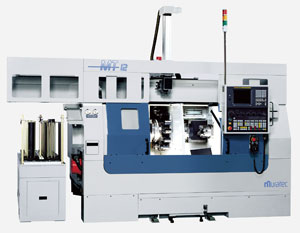

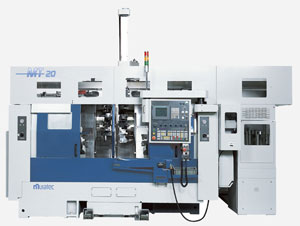

| MT12 | MT20 | MT25 | |
|---|---|---|---|
| Maximum chuck size | Standard: 165 mm (6") Option: 210 mm (8") |
210 mm (8") 254 mm (10") |
254 mm (10") |
| Number of turret stations | 15 x 2 | 15 x 2 | 15 x 2 |
| Maximum bar workpiece size | dia. 51 mm | dia. 65 mm | dia. 65 mm |
| Spindle speed range | Standard: 4,500 min-1 Option: 3,000 min-1, 6,000 min-1 |
42 min-1 - 4,200 min-1 | Standard: 4,000 min-1 15kW only Option: 2,500 min-1, 3,500 min-1 |
| Spindle AC motor | Standard: 7.5 kW / 30 min x 2 Option: 11 kW / 30 min x 2 |
Standard: 15 kW / 30 min x 2 (Only left spindle) |
Standard: 15 kW / 30 min x 2 (Only left spindle) |
| Live tool drive motor | 2.7 kW x 2 | 3.0 kW x 2 | 4.0 kW x 2 |
| Maximum tool shank size | 16 mm | 20 mm | 20 mm |
| Gross weight with loader | 5,500 kg | 11,000 kg | 12,000 kg |
