MW Series
Twin Spindle CNC Chucker
MW Series
MURATEC, a pioneer in twin spindle turning machines is making constant efforts to give our customers high quality, latest technology, next generation twin spindle turning machines for high accuracy, high productivity and cell, customized automation requirements.
Twin Spindle Turning Machine Features
- Flexible machine utilization of two identical processes or for first and second operation
- Compact design, Easy Set-up Change
- Full range of options support unattended production
- Aligning two spindles side by side enhances set-up efficiency
- A square slide and turret bar construction provide excellent rigidity(MW200,MW400)
- High speed machining
- Direct free fall of chips allows efficient clip disposal

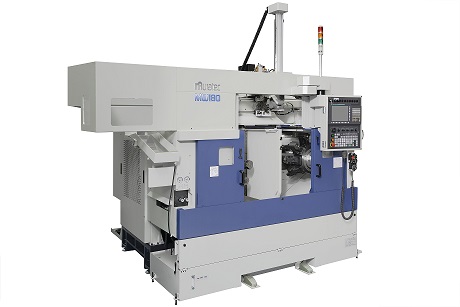

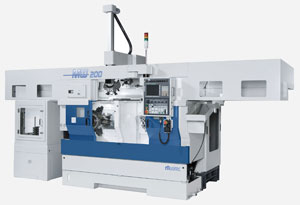

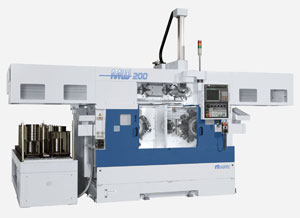

MW Series Machine Models
| 4" Chuck, 5" Chuck | 6" Chuck | 8" Chuck,10" Chuck | |||
| 4" Chuck, 5" Chuck | 6" Chuck, 8" Chuck | 8" Chuck, 10" Chuck | |||
| 6" Chuck | |||||
| 6" Chuck | 15" Chuck |
Main Specifications

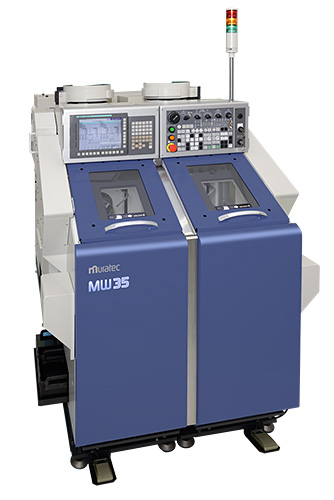

MW35 |

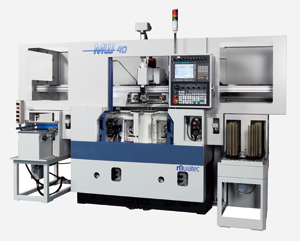

MW40 |
|
| MW35 | MW40 | |
|---|---|---|
| Chuck size | 110 mm (4") 135 mm (5") |
STD: 110 mm (4") OPT: 135 mm (5") |
| Tooling | Tool plate x 2 Width: 250 mm |
Turret x 2 |
| Number of tools | 4 x 2 | 10 x 2 |
| Spindle nose | Flat nose type | Flat nose type |
| Max. Spindle speed | 6,000 min-1 | 8,000 min-1, 10,000 min-1, |
| Spindle AC motor | 3.7kW / S6 15% | 3.7 kW / 30 min x 2 |
| Number of gantry loader | - | 1 |
| Gross weight with loader | 3,000 kg (Single Loader)3,200 kg (Two-position Loader) |
3,500 kg |

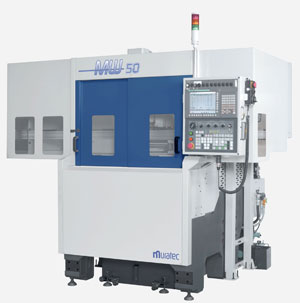

MW50 |

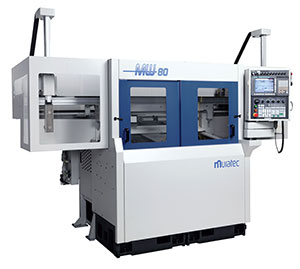

MW80 Twin-loader |
||
| MW50 | MW80 | MW80 Twin-loader |
|
|---|---|---|---|
| Chuck size | 165 mm (6") | STD: 165 mm (6") | |
| Tooling | Tool plate x 2 Width: 270 mm |
Tool plate x 2 Width: 370 mm |
|
| Number of tools | 4 x 2 | 4 x 2 | |
| Spindle nose | Flat nose type | Flat nose type | |
| Max. Spindle speed | 6,000 min-1 | 6,000 min-1 | |
| Spindle AC motor | STD: 7.5 kW / S3 / S6 25% (5.5 kW / cont.) |
STD: 7.5 kW / S3 / S6 25% (5.5 kW / cont.) |
|
| Number of gantry loader | 1 | 1 | 2 |
| Gross weight with loader | 3,500 kg | 4,000 kg | 4,150 kg |

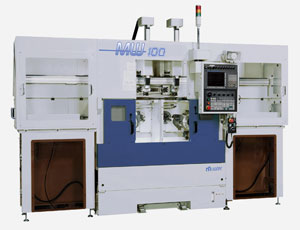

MW100
MW100 Twin-loader |

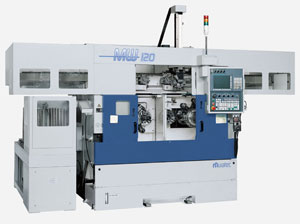

MW120

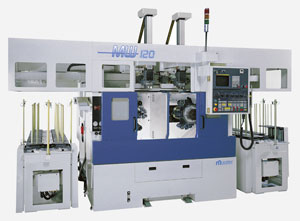

MW120 Twin-loader |
|||||
| MW100 | MW100 Twin-loader |
MW120 | MW120 Twin-loader |
|||
|---|---|---|---|---|---|---|
| Chuck size | 165 mm (6") | STD: 165 mm (6") OPT: 210 mm (8") |
||||
| Tooling | Turret x 2 | Turret x 2 | ||||
| Number of tools | 8 x 2 | 8 x 2 | STD : 8 x 2 OP : 12 x 2 |
|||
| Spindle nose | JIS A2-5 | JIS A2-5 | ||||
| Max. Spindle speed |
3,000 min-1, 4,000 min-1, 6,000 min-1 |
3,000 min-1, 4,000 min-1, 6,000 min -1 (7.5 kW only) |
||||
| Spindle AC motor | 5.5 kW / 30 min x 2 | STD : 7.5 kW / 30 min x 2 OP : 11 kW / 30 min x 2 |
||||
| Number of gantry loader | 1 | 2 | 1 | 2 | ||
| Gross weight with loader | 3,500 kg | 3,570 kg | 4,500 kg | 4,610 kg | ||
MW180 |
MW200 |
MW200 |
|||
| MW180 | MW200 | MW200 High power spindle capacity |
|||
|---|---|---|---|---|---|
| Chuck size | STD: 210 mm (8") OPT: 254 mm (10") |
STD: 210 mm (8") OPT: 254 mm (10") |
|||
| Tooling | Turret | Turret | |||
| Number of tools | STD : 10 x 2 OP : 12 x 2 |
STD : 10 x 2 OP : 12 x 2 |
10 x 2 | ||
| Spindle nose | JIS A2-6 | JIS A2-6 | JIS A2-8 | ||
| Max. Spindle speed | 2,400 min-1, 3,500 min-1 | 2,400 min-1, 3,500 min-1 | 2,500 min-1 (22 kW only) 3,500 min-1 |
||
| Spindle AC motor | 11 kW / 30 min x 2 15 kW / 30 min x 2 |
15 kW / 30 min x 2 22 kW / 30 min x 2 |
STD : 22 kW / 30 min x 2 OP : 30 kW / 30 min x 2 |
||
| Number of gantry loader | 1 | 1 | |||
| Gross weight with loader | 7,000 kg | 7,000 kg | 7,000 kg | ||

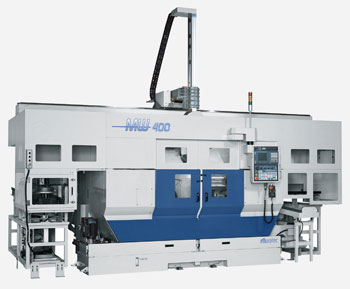

MW400 |
|
| MW400 | |
|---|---|
| Chuck size | 381 mm (15") |
| Tooling | Turret |
| Number of tools | STD : 8 x 2 OP : 12x 2 |
| Spindle nose | JIS A2-11 |
| Max. Spindle speed | STD : 3,000 min-1 (22 kW only) OP : 3,500 min-1 (30 kW only) |
| Spindle AC motor | STD : 22 kW / 30 min x 2 OP : 30 kW x 30 min x 2 |
| Number of gantry loader | 1 |
| Gross weight with loader | 13,000 kg |
