There are a linear displacement and a type corresponding to each angle displacement, and the lineup does products corresponding to various movements such as the rotations and swings from the super-slightly to the length stroke to Inductcoder of irregular Tec. The best, best system design is achieved by matching products lightness, small size, excelling in high performance and the cost performance, and various to the condition and the purpose and selecting it. Moreover, the converter that draws out the performance of the displacement sensor according to the purpose by a flexible combination is being offered.

Magnetic Induction Sensors - Inductcoder

Linear sensor
LIC/Linear sensor

It is an absolute, linear encoder of a small, built-in type for various equipment building in. In a basic type, it is suitable for the FA usage whole.

CIC/Built-in sensor in cylinder

It excels in the resistance to environment, and it corresponds to building in in the oil pressure cylinder and the empty pressure cylinder.

LIC/Linear sensor

CIC/Built-in sensor in cylinder
WIC/ Waterproof sensor

It is possible to measure by 50m waterproof function under the surface of the water, and to apply it to the machine control.


PIC/ Pencil type sensor

Linearity 2μm is achieved by measurement length from5 to 8mm. It is a gauge for the size measurement corresponding to the low measurement pressure

WIC/ Waterproof sensor

PIC/ Pencil type sensor
top
Rotation type encoder
RIC/ Rotation type encoder

Rotation type encoder of small size and high resolution. It is suitable for the FA whole and steel manufacture by an excellent repetition character. Moreover, it is possible to correspond also to a necessary usage of the resistance to environment.

RIC/ Rotation type encoder
top

Linear position sensing module

Linear position sensing module - BIC series

Directly measures the position of the target.

Can be easily installed on the mold of Injection Molding Machine, Die-casting Molding Machine, etc.

Press Release

Linear position sensing module - BIC series

top

Converter

MCQ001 converter

Direct slotting-in to the bus of the Mitsubishi sequencer Q series.

MCQ001 converter

Specifications

Model

MCQ001

Detectors

1 or 2

Power supply



Conversion output

Bus connection

Resolution

16bit max

Sampling duration

102.4μS

Response time

250μS

Data correction

Possible

MPD500 converter

Binary and switch date outputs

MPD500 converter

Specifications

Model

MPD500

Power supply

DC24V±10%

Conversion output

Binary / SW

Binary output

Resolution

16bits

Pitch count

9bits

Switch output

32ch

Response time

200μS

Data correction

Possible

Current consumption

150mA max

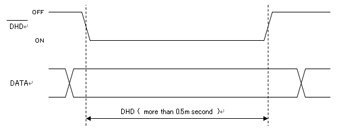

Output signal timing

Output signal timing
MP21W converter

Analog signal output

MP21W converter

Specifications

Model

MP21W-A_/B_

Power supply

DC24V±10%

Conversion output

A; 0 » +10V;+4 » 20mA
B; -10 » +10V;+4 » +20mA

Resolution

D/A 13bits

Response time

100μS

Data correction

Possible

Current consumption

200mA max

Output signal sample (4 - 20 mA)

Output signal sample (4 - 20 mA)
MP19H converter

Pulse signal output

MP19H converter

Specifications

Model

MP19H-1

MP19H-5

Power supply

DC24V±10%

Conversion output

A,B,Z Aspect
Line driver

A,B,Z Aspect
Open collector

Resolution

13bits (8,192Pulses)

Pulse rate

2MHz

50KHz

Data correction

Possible

Current consumption

300mA max

Output signal sample

Output signal sample
