Turret Punch Presses [M2048TE]

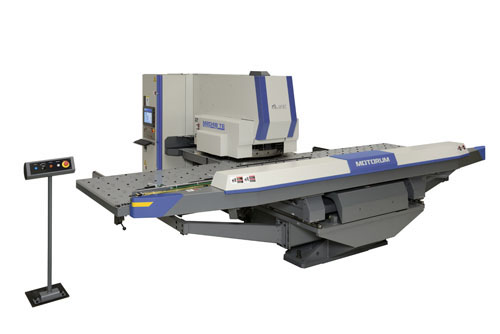

MOTORUM M2048TE

CNC Servo Motor Driven Ram Turret Punch Press

M2048TE

Servo Drive Pioneer Motorum has evolved to a new utilities
M2048TE
Muratec introduced world’s first servo driven punch press in 1994. Since then we our industry leading technology has evolved to meet the next generations needs. Here is the latest in our award winning Motorum series!

New Drive Ram Mechanism

The ram drive of M2048TE has incorporated CFRP in the part of toggle mechanism connected directly to the servomotor making it lighter in weight and more rigid. The new drive mechanism and the replacement of the alternating movement decreases vibration by 65%. In addition, a reduction of motor heat saves energy in cooling and the resuscitation of electric energy when braking.

Drive Ram Mechanism

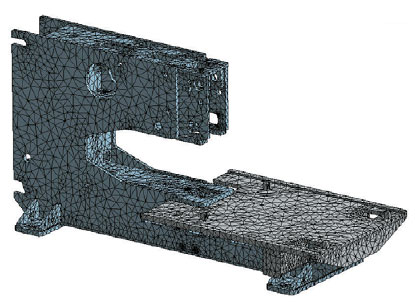

Rigid Press Frame

Improved stability in the punching process using 12.5% thicker material for the press side frames and
improved stiffness of base component.

Riqid Press Frame

Energy Conservation & Low Running Cost

An environment-friendly eco-machine, Motorum uses the energy it needs only at the time of punching, thanks to the servo motor drive mechanism.

Power Consumption Comparison

Steel Ball and Brush Combination Table

Steel balls are effective for supporting thick work sheets, and brushes are located to keep work sheets flat. This combination table is suitable for thin and thick work sheets.

Steel ball and brush combination table

Crash Sensor

Crash Sensor

Prevent major damage to the machine. Crash sensors stop the machine when material curves upward toward the turret preventing a collision.

Deburring Operation

    One tooling. All round deburring operation (Option)

    Deburring and pinching operation using the ball bearing manufactured originally by Muratec. Two bearings from top and bottom sides removes the burr of the edge both sides, upper and lower, of the punched parts simultaneously by pinching the edge of the punched sheet along with the path.

Deburring operation

Model

M2048TE

Punching capacity

200 kN
20.4 Metric Tons
22.4 US Tons

Maximum sheet thickness

6.35 mm

Maximum sheet size punchable
without repositioning (Y x X)

1250 mm x 2500 mm

No. of Turret stations

32, 28

Hit rate

1.0 t
25 mm pitch
8.3 mm stroke

285HPM

1.0 t
05 mm pitch
1.4 mm stroke

900 HPM

Punching accuracy

± 0.1mm
